XBD-HY消防恒压切线泵为与电机共轴直连的消防泵，结构十分紧凑，占地面积小，经由管道泵改进机械密封可靠，内部结构合理，过流部件选用不锈钢和铝合金制造，可靠性很高，使用寿命长，运转平衡，噪音小，免维护，终身保修。
XBD-HY消防恒压切线泵产品优势是什么？
XBD-HY消防恒压切线泵最大的特点是变流稳压，流量-扬程曲线很平坦，即从零流量到所需最大流量范围内变化时，其扬程变化在5%以内，且小流量或零流量时不超压，能确保消防工作的正常进行，大大提高了灭火效率及消防设备可靠性和消防人员的安全。XBD-HY消防恒压切线泵的驱动电机为普通电机，不需变速，这标志着我国消防泵技术的重大突破，将会带来显著的社会效益和经济效益。XBD-HY消防恒压切线泵用于哪些方面？
XBD-HY消防泵主要用于工业及民用建筑固定消防系统（消火栓灭火系统，自动喷淋灭火系统和水喷雾灭火系统），另外也可用于消防和生活，生产共用的给水系统及建筑，市政，工矿，锅炉给水等场合。XBD-HY消防恒压切线泵型号表示方法

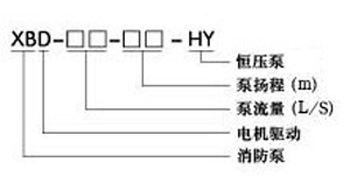

XBD-HY消防恒压切线泵选型参数参考
|
XBD-HY消防恒压切线泵型号 |
流量 |
扬程 |
转速 |
配带电机 |
功率 |
泵进口 |
泵出口 |
重量 |
|
Q(L/S) |
H(m) |
n(r/min) |
N(kW) |
(mm) |
(mm) |
(kg) |
||
|
XBD10-20-HY消防恒压切线泵 |
0~10 |
20 |
2890 |
Y2-112M-2 |
4 |
Φ65 |
Φ50 |
90 |
|
XBD10-30-HY消防恒压切线泵 |
30 |
2900 |
Y2-132S1-2 |
5.5 |
120 |
|||
|
XBD10-40-HY消防恒压切线泵 |
40 |
2900 |
Y2-132S2-2 |
7.5 |
130 |
|||
|
XBD10-50-HY消防恒压切线泵 |
50 |
2930 |
Y2-160M1-2 |
11 |
240 |
|||
|
XBD10-60-HY消防恒压切线泵 |
60 |
2930 |
Y2-160M1-2 |
11 |
240 |
|||
|
XBD10-70-HY消防恒压切线泵 |
70 |
2930 |
Y2-160M2-2 |
15 |
250 |
|||
|
XBD10-80-HY消防恒压切线泵 |
80 |
2930 |
Y2-1601-2 |
18.5 |
270 |
|||
|
XBD10-90-HY消防恒压切线泵 |
90 |
2940 |
Y2-180M-2 |
22 |
320 |
|||
|
XBD10-100-HY消防恒压切线泵 |
100 |
2940 |
Y2-180M-2 |
22 |
325 |
|||
|
XBD15-20-HY消防恒压切线泵 |
0～15 |
20 |
2900 |
Y2-132S1-2 |
5.5 |
Φ80 |
Φ65 |
120 |
|
XBD15-30-HY消防恒压切线泵 |
30 |
2900 |
Y2-132S2-2 |
7.5 |
130 |
|||
|
XBD15-40-HY消防恒压切线泵 |
40 |
2930 |
Y2-160M1-2 |
11 |
240 |
|||
|
XBD15-50-HY消防恒压切线泵 |
50 |
2930 |
Y2-160M2-2 |
15 |
250 |
|||
|
XBD15-60-HY消防恒压切线泵 |
60 |
2930 |
Y2-160M2-2 |
15 |
250 |
|||
|
XBD15-70-HY消防恒压切线泵 |
70 |
2930 |
Y2-1601-2 |
18.5 |
270 |
|||
|
XBD15-80-HY消防恒压切线泵 |
80 |
2940 |
Y2-180M-2 |
22 |
325 |
|||
|
XBD15-90-HY消防恒压切线泵 |
90 |
2950 |
Y2-20011-2 |
30 |
390 |
|||
|
XBD15-100-HY消防恒压切线泵 |
100 |
2950 |
Y2-20011-2 |
30 |
390 |
|||
|
XBD15-110-HY消防恒压切线泵 |
110 |
2950 |
Y2-20012-2 |
37 |
390 |
|||
|
XBD15-120-HY消防恒压切线泵 |
120 |
2950 |
Y2-20012-2 |
37 |
390 |
|||
|
XBD20-30-HY消防恒压切线泵 |
0～20 |
30 |
2930 |
Y2-160M1-2 |
11 |
Φ80 |
Φ65 |
235 |
|
XBD20-40-HY消防恒压切线泵 |
40 |
2930 |
Y2-160M2-2 |
15 |
250 |
|||
|
XBD20-50-HY消防恒压切线泵 |
50 |
2930 |
Y2-1601-2 |
18.5 |
280 |
|||
|
XBD20-60-HY消防恒压切线泵 |
60 |
2940 |
Y2-180M-2 |
22 |
310 |
|||
|
XBD20-70-HY消防恒压切线泵 |
70 |
2940 |
Y2-180M-2 |
22 |
310 |
|||
|
XBD20-80-HY消防恒压切线泵 |
80 |
2950 |
Y2-20011-2 |
30 |
380 |
|||
|
XBD20-90-HY消防恒压切线泵 |
90 |
2950 |
Y2-20012-2 |
37 |
390 |
|||
|
XBD20-100-HY消防恒压切线泵 |
100 |
2950 |
Y2-20012-2 |
37 |
390 |
|||
|
XBD20-110-HY消防恒压切线泵 |
110 |
4500 |
Y2-20012-2 |
37 |
510 |
|||
|
XBD20-120-HY消防恒压切线泵 |
120 |
4500 |
Y2-225M-2 |
45 |
590 |
|||
|
XBD20-130-HY消防恒压切线泵 |
130 |
4500 |
Y2-225M-2 |
45 |
590 |
|||
|
XBD20-140-HY消防恒压切线泵 |
140 |
4500 |
Y2-250M-2 |
55 |
690 |
|||
|
XBD20-150-HY消防恒压切线泵 |
150 |
4500 |
Y2-250M-2 |
55 |
690 |
|||
|
XBD20-160-HY消防恒压切线泵 |
160 |
450n |
Y2-250M-2 |
55 |
690 |
|||
|
XBD20-170-HY消防恒压切线泵 |
170 |
4500 |
Y2-280S-2 |
75 |
850 |
|||
|
XBD20-180-HY消防恒压切线泵 |
180 |
4500 |
Y2-280S-2 |
75 |
850 |
|||
|
XBD20-190-HY消防恒压切线泵 |
190 |
4500 |
Y2-280S-2 |
75 |
850 |
|||
|
XBD20-200-HY消防恒压切线泵 |
200 |
4500 |
Y2-280S-2 |
75 |
850 |
|||
|
XBD20-210-HY消防恒压切线泵 |
210 |
4500 |
Y2-280M-2 |
90 |
980 |
|||
|
XBD20-220-HY消防恒压切线泵 |
220 |
4500 |
Y2-280M-2 |
90 |
980 |
|||
|
XBD30-30-HY消防恒压切线泵 |
0～30 |
30 |
2940 |
Y2-180M-2 |
22 |
Φ100 |
Φ80 |
320 |
|
XBD30-40-HY消防恒压切线泵 |
40 |
2950 |
Y2-200M-2 |
30 |
385 |
|||
|
XBD30-50-HY消防恒压切线泵 |
50 |
2950 |
Y2-20011-2 |
30 |
385 |
|||
|
XBD30-60-HY消防恒压切线泵 |
60 |
2950 |
Y2-20012-2 |
37 |
400 |
|||
|
XBD30-70-HY消防恒压切线泵 |
70 |
2950 |
Y2-20012-2 |
37 |
400 |
|||
|
XBD30-80-HY消防恒压切线泵 |
80 |
2970 |
Y2-225M-2 |
45 |
475 |
|||
|
XBD30-90-HY消防恒压切线泵 |
90 |
2970 |
Y2-225M-2 |
45 |
475 |
|||
|
XBD30-100-HY消防恒压切线泵 |
100 |
2970 |
Y2-250M-2 |
55 |
550 |
|||
|
XBD30-110-HY消防恒压切线泵 |
110 |
2970 |
Y2-250M-2 |
55 |
550 |
|||
|
XBD30-120-HY消防恒压切线泵 |
120 |
2970 |
Y2-280S-2 |
75 |
700 |
|||
|
XBD30-130-HY消防恒压切线泵 |
130 |
2970 |
Y2-280S-2 |
75 |
700 |
|||
|
XBD30-140-HY消防恒压切线泵 |
140 |
2970 |
Y2-280S-2 |
75 |
700 |
|||
|
XBD30-150-HY消防恒压切线泵 |
150 |
2970 |
Y2-280S-2 |
75 |
700 |
|||
|
XBD30-160-HY消防恒压切线泵 |
160 |
4500 |
Y2-280M-2 |
90 |
915 |
|||
|
XBD30-170-HY消防恒压切线泵 |
170 |
4500 |
Y2-280M-2 |
90 |
915 |
|||
|
XBD30-180-HY消防恒压切线泵 |
180 |
4500 |
Y2-280M-2 |
90 |
915 |
|||
|
XBD30-190-HY消防恒压切线泵 |
190 |
4500 |
Y2-280M-2 |
90 |
915 |
|||
|
XBD30-200-HY消防恒压切线泵 |
200 |
4500 |
Y2-315S-2 |
110 |
1280 |
|||
|
XBD30-210-HY消防恒压切线泵 |
210 |
4500 |
Y2-315S-2 |
110 |
1280 |
|||
|
XBD30-220-HY消防恒压切线泵 |
220 |
4500 |
Y2-315M-2 |
132 |
1280 |
|||
|
XBD30-230-HY消防恒压切线泵 |
230 |
4500 |
Y2-315M-2 |
132 |
1395 |
|||
|
XBD30-240-HY消防恒压切线泵 |
240 |
4500 |
Y2-315M-2 |
132 |
1395 |
|||
|
XBD30-250-HY消防恒压切线泵 |
250 |
4500 |
Y2-315L1-2 |
160 |
1510 |
|||
|
XBD30-260-HY消防恒压切线泵 |
260 |
4500 |
Y2-315L1-2 |
160 |
1510 |
|||
|
XBD40-30-HY消防恒压切线泵 |
0～40 |
30 |
1470 |
Y2-180L-4 |
22 |
Φ125 |
Φ100 |
315 |
|
XBD40-40-HY消防恒压切线泵 |
40 |
1470 |
Y2-200L-4 |
30 |
380 |
|||
|
XBD40-50-HY消防恒压切线泵 |
50 |
2950 |
Y2-220L2-2 |
37 |
475 |
|||
|
XBD40-60-HY消防恒压切线泵 |
60 |
2970 |
Y2-225M-2 |
45 |
475 |
|||
|
XBD40-70-HY消防恒压切线泵 |
70 |
2970 |
Y2-250M-2 |
55 |
550 |
|||
|
XBD40-80-HY消防恒压切线泵 |
80 |
2970 |
Y2-280S-2 |
75 |
700 |
|||
|
XBD40-90-HY消防恒压切线泵 |
90 |
2970 |
Y2-280S-2 |
75 |
700 |
|||
|
XBD40-100-HY消防恒压切线泵 |
100 |
2970 |
Y2-280S-2 |
75 |
700 |
|||
|
XBD40-110-HY消防恒压切线泵 |
110 |
2970 |
Y2-280S-2 |
75 |
700 |
|||
|
XBD40-120-HY消防恒压切线泵 |
120 |
2970 |
Y2-280M-2 |
90 |
775 |
|||
|
XBD40-130-HY消防恒压切线泵 |
130 |
2970 |
Y2-280M-2 |
90 |
775 |
|||
|
XBD40-140-HY消防恒压切线泵 |
140 |
2970 |
Y2-280M-2 |
90 |
775 |
|||
|
XBD40-150-HY消防恒压切线泵 |
150 |
4500 |
Y2-315S-2 |
110 |
1290 |
|||
|
XBD40-160-HY消防恒压切线泵 |
160 |
4500 |
Y2-315S-2 |
110 |
1290 |
|||
|
XBD40-170-HY消防恒压切线泵 |
170 |
4500 |
Y2-315S-2 |
110 |
1290 |
|||
|
XBD40-180-HY消防恒压切线泵 |
180 |
4500 |
Y2-315S-2 |
110 |
1290 |
|||
|
XBD40-190-HY消防恒压切线泵 |
190 |
4500 |
Y2-315M-2 |
132 |
1395 |
|||
|
XBD40-200-HY消防恒压切线泵 |
200 |
4500 |
Y2-315L1-2 |
160 |
1510 |
|||
|
XBD40-210-HY消防恒压切线泵 |
210 |
4500 |
Y2-315L1-2 |
160 |
1510 |
|||
|
XBD40-220-HY消防恒压切线泵 |
220 |
4500 |
Y2-315L1-2 |
160 |
1510 |
|||
|
XBD40-230-HY消防恒压切线泵 |
230 |
4500 |
Y2-315L2-2 |
200 |
1580 |
|||
|
XBD40-240-HY消防恒压切线泵 |
240 |
4500 |
Y2-315L2-2 |
200 |
1580 |
|||
|
XBD40-250-HY消防恒压切线泵 |
250 |
4500 |
Y2-315L2-2 |
200 |
1580 |
|||
|
XBD40-260-HY消防恒压切线泵 |
260 |
4500 |
Y2-315L2-2 |
200 |
1580 |
|||
|
XBD50-30-HY消防恒压切线泵 |
0～50 |
30 |
2950 |
Y2-200L1-2 |
30 |
385 |
||
|
XBD50-40-HY消防恒压切线泵 |
40 |
2950 |
Y2-200L2-2 |
37 |
400 |
|||
|
XBD50-50-HY消防恒压切线泵 |
50 |
2950 |
Y2-200L2-2 |
37 |
Φ150 |
Φ125 |
400 |
|
|
XBD50-60-HY消防恒压切线泵 |
60 |
2970 |
Y2-22SM-2 |
45 |
Φ125 |
Φ100 |
480 |
|
|
XBD50-70-HY消防恒压切线泵 |
70 |
2970 |
Y2-250M-2 |
55 |
555 |
|||
|
XBD50-80-HY消防恒压切线泵 |
80 |
2970 |
Y2-250M-2 |
55 |
555 |
|||
|
XBD50-90-HY消防恒压切线泵 |
90 |
2970 |
Y2-280S-2 |
75 |
710 |
|||
|
XBD50-100-HY消防恒压切线泵 |
100 |
2970 |
Y2-280S-2 |
75 |
710 |
|||
|
XBD50-110-HY消防恒压切线泵 |
110 |
2970 |
Y2-280M-2 |
90 |
780 |
|||
|
XBD50-120-HY消防恒压切线泵 |
120 |
2980 |
Y2-315S-2 |
110 |
780 |
|||
|
XBD50-130-HY消防恒压切线泵 |
130 |
2980 |
Y2-315S-2 |
110 |
1300 |
|||
|
XBD50-140-HY消防恒压切线泵 |
140 |
2980 |
Y2-315M-2 |
132 |
1340 |
|||
|
XBD50-150-HY消防恒压切线泵 |
150 |
2980 |
Y2-315M-2 |
132 |
1340 |
|||
|
XBD50-160-HY消防恒压切线泵 |
160 |
2980 |
Y2-315L1-2 |
160 |
1420 |
|||
|
XBD50-170-HY消防恒压切线泵 |
170 |
2980 |
Y2-315L1-2 |
160 |
1420 |
|||
|
XBD50-180-HY消防恒压切线泵 |
180 |
4500 |
Y2-315L1-2 |
160 |
1520 |
|||
|
XBD50-190-HY消防恒压切线泵 |
190 |
4500 |
Y2-315L2-2 |
200 |
1590 |
|||
|
XBD50-200-HY消防恒压切线泵 |
200 |
4500 |
Y2-315L2-2 |
200 |
1590 |
|||
|
XBD50-210-HY消防恒压切线泵 |
210 |
4500 |
Y2-315L2-2 |
200 |
1590 |
|||
|
XBD50-220-HY消防恒压切线泵 |
220 |
4500 |
Y2-315L2-2 |
200 |
1590 |
|||
|
XBD50-230-HY消防恒压切线泵 |
230 |
4500 |
Y2-315L2-2 |
200 |
1590 |
|||
|
XBD60-30-HY消防恒压切线泵 |
0～60 |
30 |
2950 |
Y2-200L1-2 |
30 |
Φ150 |
Φ125 |
390 |
|
XBD60-40-HY消防恒压切线泵 |
40 |
2950 |
Y2-200L2-2 |
37 |
405 |
|||
|
XBD60-50-HY消防恒压切线泵 |
50 |
2970 |
Y2-225M-2 |
45 |
485 |
|||
|
XBD60-60-HY消防恒压切线泵 |
60 |
2970 |
Y2-250M-2 |
55 |
560 |
|||
|
XBD60-70-HY消防恒压切线泵 |
70 |
2970 |
Y2-250M-2 |
55 |
560 |
|||
|
XBD60-80-HY消防恒压切线泵 |
80 |
2970 |
Y2-280S-2 |
75 |
715 |
|||
|
XBD60-90-HY消防恒压切线泵 |
90 |
2970 |
Y2-280S-2 |
75 |
715 |
|||
|
XBD60-100-HY消防恒压切线泵 |
100 |
2970 |
Y2-280M-2 |
90 |
Φ125 |
Φ100 |
790 |
|
|
XBD60-110-HY消防恒压切线泵 |
110 |
2970 |
Y2-280M-2 |
90 |
Φ150 |
Φ125 |
790 |
|
|
XBD60-120-HY消防恒压切线泵 |
120 |
2980 |
Y2-315S-2 |
110 |
1305 |
|||
|
XBD60-130-HY消防恒压切线泵 |
130 |
2980 |
Y2-315M-2 |
132 |
1340 |
|||
|
XBD60-140-HY消防恒压切线泵 |
140 |
2980 |
Y2-315L1-2 |
160 |
1420 |
|||
|
XBD60-150-HY消防恒压切线泵 |
150 |
2980 |
Y2-315L1-2 |
160 |
1420 |
|||
|
XBD60-160-HY消防恒压切线泵 |
160 |
2980 |
Y2-315L2-2 |
200 |
1450 |
|||
|
XBD60-170-HY消防恒压切线泵 |
170 |
2980 |
Y2-315L2-2 |
200 |
1450 |
|||
|
XBD60-180-HY消防恒压切线泵 |
180 |
2980 |
Y2-315L2-2 |
200 |
1450 |
|||
|
XBD70-30-HY消防恒压切线泵 |
0～70 |
30 |
2950 |
Y2-200L2-2 |
37 |
Φ150 |
Φ125 |
405 |
|
XBD70-40-HY消防恒压切线泵 |
40 |
2950 |
Y2-225M-2 |
45 |
485 |
|||
|
XBD70-50-HY消防恒压切线泵 |
50 |
2970 |
Y2-250M-2 |
55 |
560 |
|||
|
XBD70-60-HY消防恒压切线泵 |
60 |
2970 |
Y2-2808-2 |
75 |
720 |
|||
|
XBD70-70-HY消防恒压切线泵 |
70 |
2970 |
Y2-280S-2 |
75 |
720 |
|||
|
XBD70-80-HY消防恒压切线泵 |
80 |
2970 |
Y2-280M-2 |
90 |
790 |
|||
|
XBD70-90-HY消防恒压切线泵 |
90 |
2970 |
Y2-280M-2 |
90 |
790 |
|||
|
XBD70-100-HY消防恒压切线泵 |
100 |
2970 |
Y2-280M-2 |
90 |
790 |
|||
|
XBD70-110-HY消防恒压切线泵 |
110 |
2970 |
Y2-315S-2 |
110 |
1310 |
|||
|
XBD70-120-HY消防恒压切线泵 |
120 |
2980 |
Y2-315M-2 |
132 |
1310 |
|||
|
XBD70-130-HY消防恒压切线泵 |
130 |
2980 |
Y2-315M-2 |
132 |
1410 |
|||
|
XBD70-140-HY消防恒压切线泵 |
140 |
2980 |
Y2-315L1-2 |
160 |
1410 |
|||
|
XBD70-150-HY消防恒压切线泵 |
150 |
2980 |
Y2-315L1-2 |
160 |
1490 |
|||
|
XBD70-160-HY消防恒压切线泵 |
160 |
2980 |
Y2-315L1-2 |
160 |
1490 |
|||
|
XBD70-170-HY消防恒压切线泵 |
170 |
2980 |
Y2-315L2-2 |
200 |
1520 |
|||
|
XBD80-90-HY消防恒压切线泵 |
0～80 |
90 |
2980 |
Y2-315S-2 |
110 |
Φ150 |
Φ125 |
1320 |
|
XBD80-100-HY消防恒压切线泵 |
100 |
2980 |
Y2-315S-2 |
110 |
1320 |
|||
|
XBD80-110-HY消防恒压切线泵 |
110 |
2980 |
Y2-315M-2 |
132 |
1420 |
|||
|
XBD80-120-HY消防恒压切线泵 |
120 |
2980 |
Y2-315M-2 |
132 |
1420 |
|||
|
XBD90-60-HY消防恒压切线泵 |
0～90 |
60 |
2970 |
Y2-280M-2 |
90 |
Φ150 |
Φ150 |
820 |
|
XBD90-70-HY消防恒压切线泵 |
70 |
2980 |
Y2-315S-2 |
110 |
Φ150 |
Φ125 |
1320 |
|
|
XBD90-80-HY消防恒压切线泵 |
80 |
2980 |
Y2-315S-2 |
110 |
1320 |
|||
|
XBD90-90-HY消防恒压切线泵 |
90 |
2980 |
Y2-315S-2 |
110 |
1320 |
|||
|
XBD90-100-HY消防恒压切线泵 |
100 |
2980 |
Y2-315M-2 |
132 |
1420 |
|||
|
XSD90-110-HY消防恒压切线泵 |
110 |
2980 |
Y2-315M-2 |
132 |
1420 |
|||
|
XBDl00-60-HY消防恒压切线泵 |
0～100 |
60 |
2970 |
Y2-280M-2 |
90 |
Φ150 |
Φ150 |
820 |
|
XBDl00-70-HY消防恒压切线泵 |
70 |
2980 |
Y2-315S-2 |
110 |
Φ200 |
Φ150 |
1320 |
|
|
XBDl00-80-HY消防恒压切线泵 |
80 |
2980 |
Y2-315M-2 |
132 |
1420 |
XBD-HY消防恒压切线泵安装需要特别注意
1.XBD-HY消防恒压切线泵全部配有底座，当泵房设置在底层时，可用地脚螺栓直接安装在混凝土基础上。如果安装在楼层上或隔振要求较高的场合，可采用弹簧减震器和橡胶减振垫同时组合使用，减振效果更佳。水泵进出水管端必须安装橡胶挠性接头，管路系统的重量不得加在水泵上，其进出水管应用弹性吊架固定。2.泵组水平安置，在底座下地脚螺栓孔处用金属垫块垫平，拧上螺母，灌注水泥，将底座固定稳定，安装防止底座三点接触不稳。
3.接上电机电源，电机转向应使泵按箭头指向旋转（从电机端看泵，其转向为顺时针方向）。
4.XBD-HY消防恒压切线泵进出口接自来水，管径应与泵进出口直径相同，进出口管路都应有良好的对中性，长度合适，不能使泵受较大的外力。
5.启动前应作好如下准备：
a.用手转动电机轴，转动应灵活，无卡阻现象；
b.泵启动前，应使泵内充满介质；
6.机械密封泄漏量允许值为5ml/h，若认为密封泄漏量太大时，更换机械密封。
注意：机械密封动、静环端面用酒精洗干净，其余金属件用汽油清洗并用洁净的压缩空气吹干，仔细检查动、静环密封面不得有任何损伤，装配前，橡胶密封圈应涂上一层润滑油膏。
订货请尽量提供：
1.型号2.口径3.扬程（m）4.流量5.电机功率（KW）6.转速（R/min）7.材质不否带附件8.电压（V）
欢迎您访问我们泉达泵阀【www.quandabf.cn】如有任何疑问.您可以致电给我们,我们定会尽力为您提供优质的服务。
